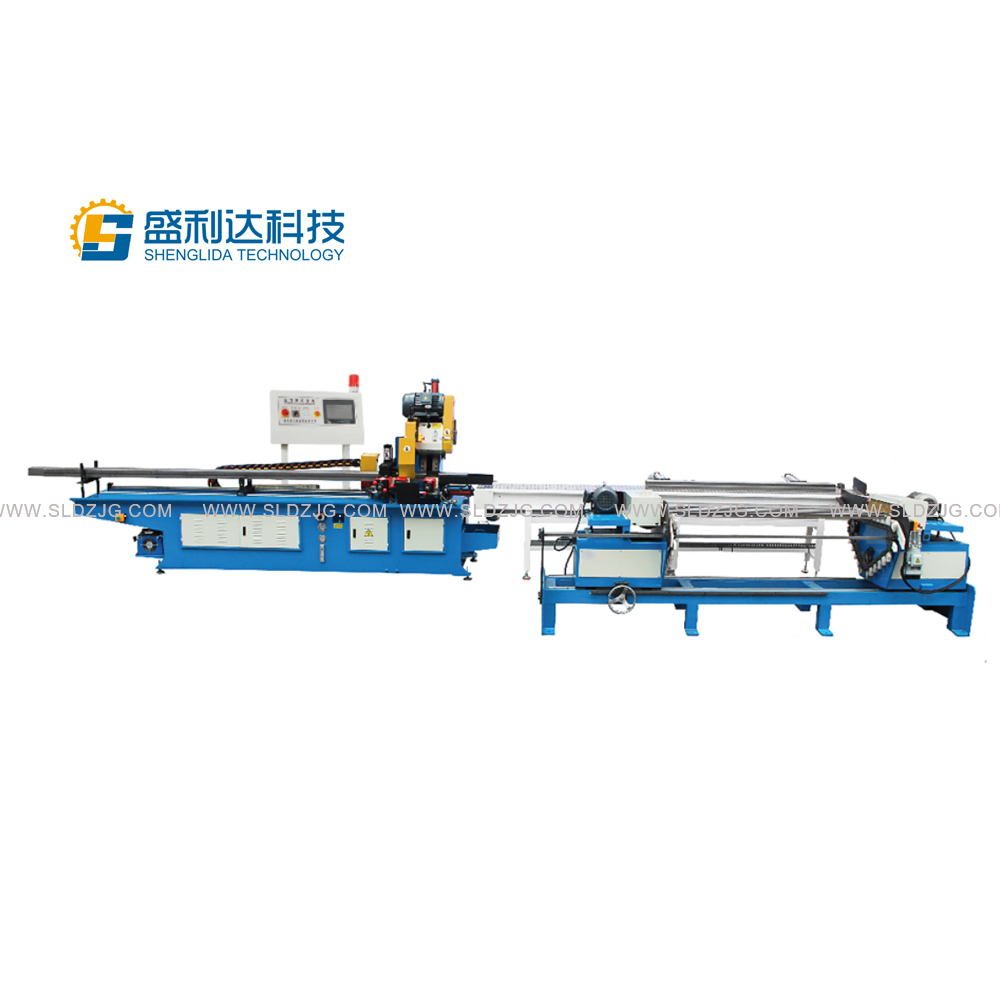

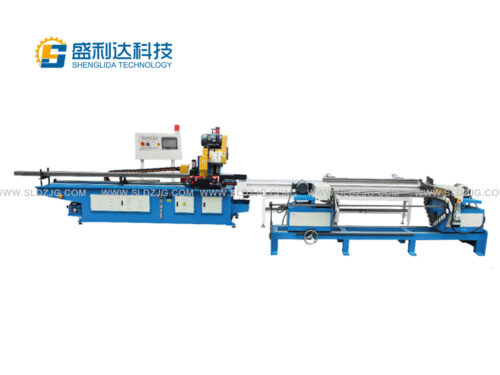

Loading rack sawing

■The machine can feed up to 1500mm at a time, servo feeding (feeding length can be customized according to customer requirements)

■The machine can cut multiple pipes, and can cut at least 4 Ф25mm pipes at a time.

■Feeding can be repeated multiple times.

■The machine can cut steel pipes of different diameters (Ф25-125mm) by changing the jaws.

Mesaj Whatsapp

Shenglida Technology (Zhangjiagang) Co., Ltd. is a professional manufacturer of pipe bending machines, pipe cutting machines, pipe shrinking machines, chamfering machines and other pipe fittings equipment. Among them, pipe cutting machines are divided into: laser cutting, fully automatic pipe cutting machines, semi-automatic pipe cutting machines, feeder sawing, and aluminum cutting machines.

Mechanical features of feeder sawing machine

■ This machine can feed up to 1500mm at a time, servo feeding (feeding length can be customized according to customer requirements)

■ This machine can cut multiple pipes, and cut at least 4 Ф25mm pipes at a time.

■ Feeding can be repeated many times.

■ This machine can cut steel pipes of different diameters (Ф25-125mm) by changing the jaws.

■ Pipe fittings are placed on the machine table, automatically clamped, automatically fed, automatically cut, and cycled.

■ Automatic pipe cutting, automatic discharging, connected to automatic deburring machine, using intelligent control system, saving labor and improving production efficiency.

■Suitable for round tubes, oval tubes, square tubes, special-shaped tubes, single or multiple automatic cutting, deburring.

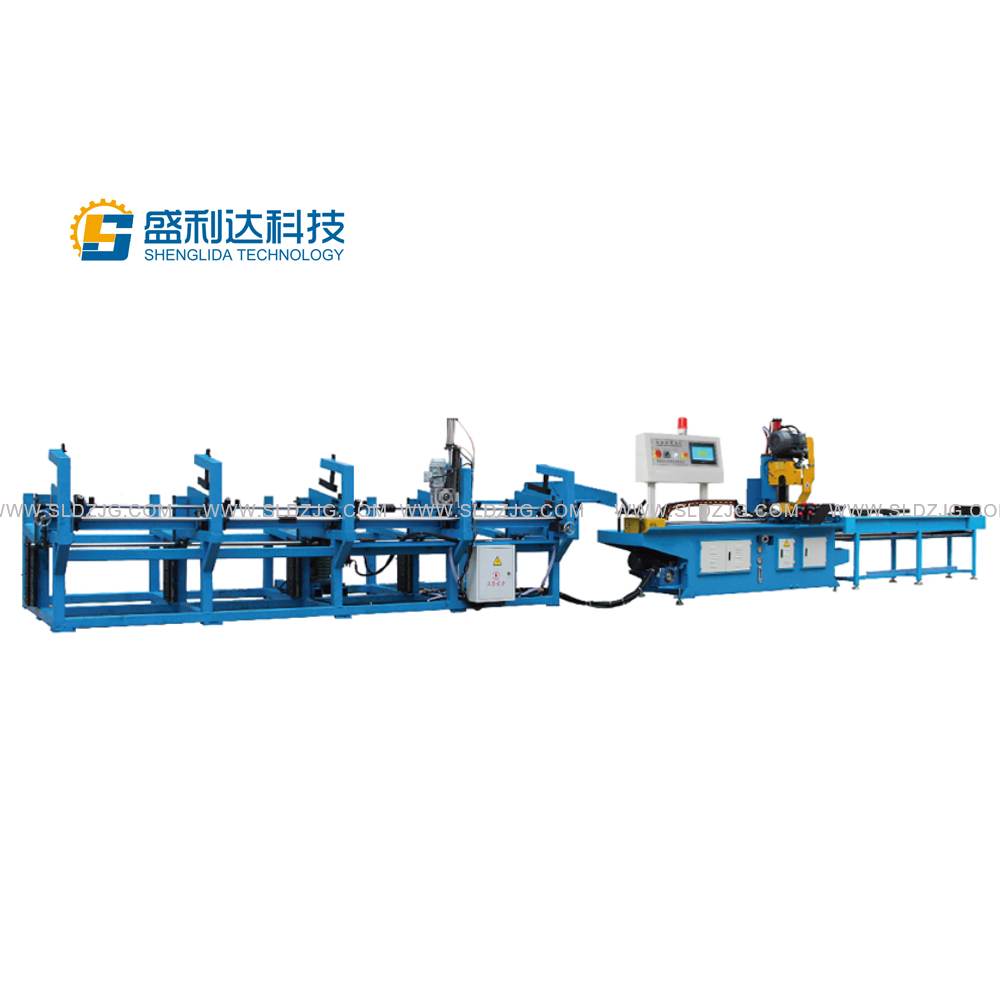

According to different product requirements, professional customization for user needs, automatic loading rack optional

Shenglida Technology (Zhangjiagang) Co., Ltd. is a professional manufacturer of pipe bending machines, pipe cutting machines, pipe shrinking machines, chamfering machines and other pipe fittings equipment. Among them, pipe cutting machines are divided into: laser cutting, fully automatic pipe cutting machines, semi-automatic pipe cutting machines, feeder sawing, and aluminum cutting machines.

Mechanical features of feeder sawing machine

■ This machine can feed up to 1500mm at a time, servo feeding (feeding length can be customized according to customer requirements)

■ This machine can cut multiple pipes, and cut at least 4 Ф25mm pipes at a time.

■ Feeding can be repeated many times.

■ This machine can cut steel pipes of different diameters (Ф25-125mm) by changing the jaws.

■ Pipe fittings are placed on the machine table, automatically clamped, automatically fed, automatically cut, and cycled.

■ Automatic pipe cutting, automatic discharging, connected to automatic deburring machine, using intelligent control system, saving labor and improving production efficiency.

■Suitable for round tubes, oval tubes, square tubes, special-shaped tubes, single or multiple automatic cutting, deburring.

According to different product requirements, professional customization for user needs, automatic loading rack optional

model G90
Cutting pipe length Unlimited length
Cutting pipe diameter Ф6-Ф80
Caudidae ≥50mnm
X-axis travel 0-950mm
Y-axis travel ± 50mm
Z-axis travel 0-100mm
Cutting accuracy ±0.05mm
Position accuracy ±0.02mm(The accuracy of the pipe itself is within ±0.1)
Pulling accuracy ±0.1mm(Single)
Slit width 0.1-0.2mm
Repeat positioning accuracy ±0.03mm
A-axis maximum operating speed 900mm’s
Maximum running speed of X beats 800 mm/s
Maximum operating speed of Y axis 500mm/s
Z axis maximum operating speed 500mms
Acceleration 1.5G
Pulling method pneumatic
Machine weight 900kg
Supply voltage 380v
Rated Power 3400w(Without laser, water chiller)
Actual load factor 45%
Area 2100mmx1300mmx2300mm



İlgili ürünler

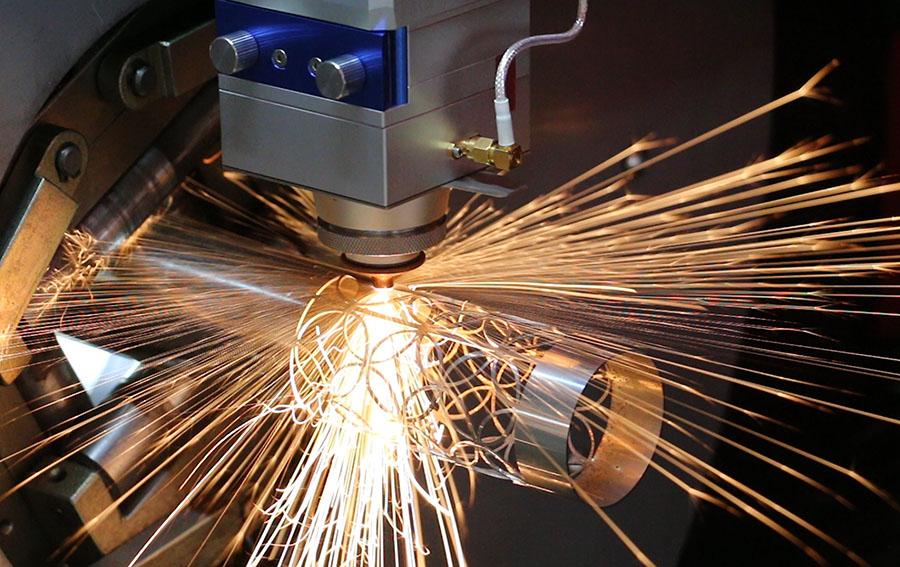

Lazer tüp kesme makinesi

This machine is used for three-dimensional cutting of square tubes, round tubes, oval tubes and other pipes. It has a stable structure, no deformation of the pipe mouth, and no burrs. The cutting range is wide, 10-80mm, and the cutting tail is within 50mm. One person can operate multiple devices, and the efficiency is 3-5 times that of ordinary pipe cutting machines.
