Sealing Machine

    The tube end forming machines produced by Shenglida Technology are reliable, efficient and easy to integrate with automatic loading and unloading solutions or complex production lines. They can perform a variety of processing processes, including deburring, flaring, end trimming, shrinking, threading, rolling, sealing, material cutting and cutting, etc.

    Message Whatsapp

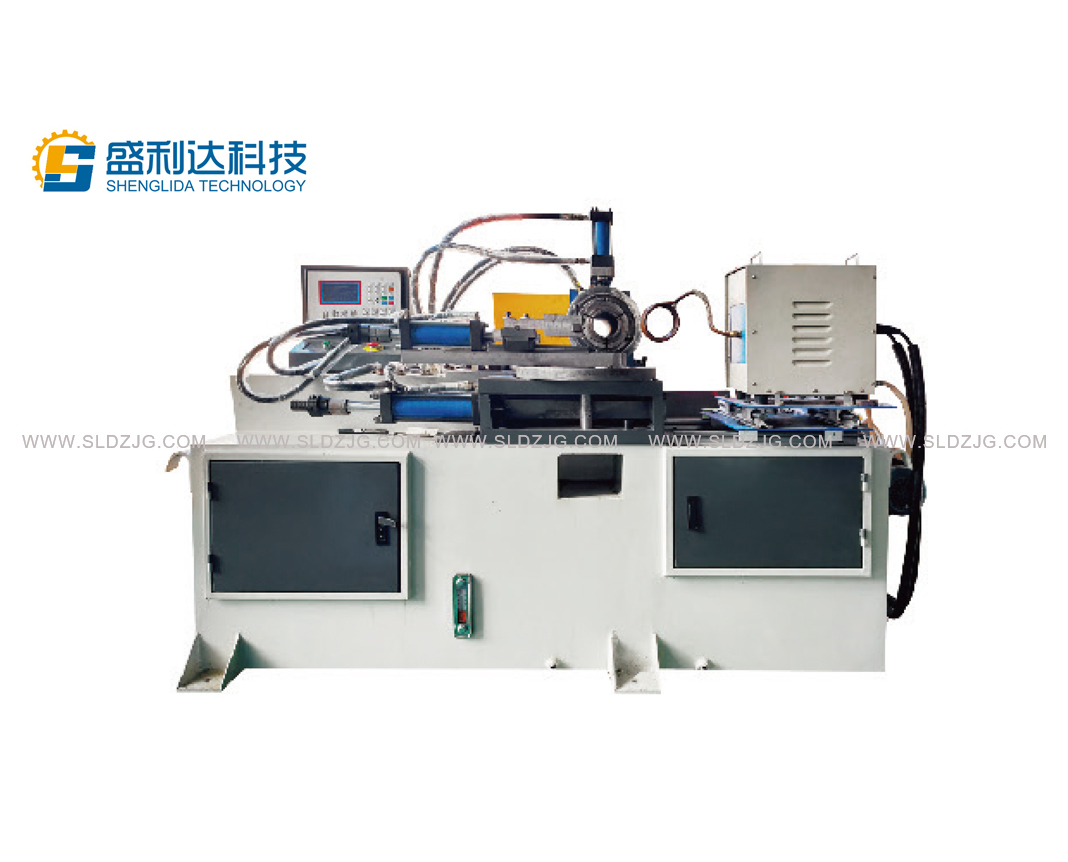

      The fully automatic heating sealing machine is a product developed by our company based on the absorption of foreign advanced technology. It has a Kewei intelligent controller, touch screen control, hydraulic drive, high-frequency heating, human-machine dialogue operation, simple setting input, manual and automatic selection and automatic conversion. The mobile switch button has two functions: sealing and positioning. It has high safety, counting function, and one-time sealing. The whole machine has stable performance and high efficiency, and is an ideal equipment in the pipe sealing processing industry. The high-efficiency hydraulic cylinder pushes the rack, and the gear rotates to achieve sealing. The specially designed fixture has strong clamping force, reliable and safe, and does not damage the surface of the workpiece. The coolant circulates automatically to ensure long-term operation of the equipment. Mechanical features of the sealing machine: automatic clamping, different pipe diameters, mold replacement, and customized rotary heads.

      The fully automatic heating sealing machine is a product developed by our company based on the absorption of foreign advanced technology. It has a Kewei intelligent controller, touch screen control, hydraulic drive, high-frequency heating, human-machine dialogue operation, simple setting input, manual and automatic selection and automatic conversion. The mobile switch button has two functions: sealing and positioning. It has high safety, counting function, and one-time sealing. The whole machine has stable performance and high efficiency, and is an ideal equipment in the pipe sealing processing industry. The high-efficiency hydraulic cylinder pushes the rack, and the gear rotates to achieve sealing. The specially designed fixture has strong clamping force, reliable and safe, and does not damage the surface of the workpiece. The coolant circulates automatically to ensure long-term operation of the equipment. Mechanical features of the sealing machine: automatic clamping, different pipe diameters, mold replacement, and customized rotary heads.

      Name/Model FK-40 FK-60 FK-80 FK-100 FK-120
      Maximum applicable pipe fittings Ф40×2.0t Ф60×2.0t Ф80×2.0t Ф100×2.0t Ф120×2.0t
      Maximum working stroke 100mm 130mm 150mm 150mm 150mm
      Hydraulic output 4.5Mpa 12Mpa 12Mpa 14Mpa 14Mpa
      Working speed 100mm in 3-4sec 100mm in 3-4sec 130mm in 5-6sec 140mm in 6-7sec 140mm in 8-9sec
      Machine size 2000x550x1300mm 2000x600x1400mm 2900x700x1400mm 3000x750x1500mm 3500x900x1800mm
      Machine weight 60 600kg 800kg 950kg 1200kg 2000kg
