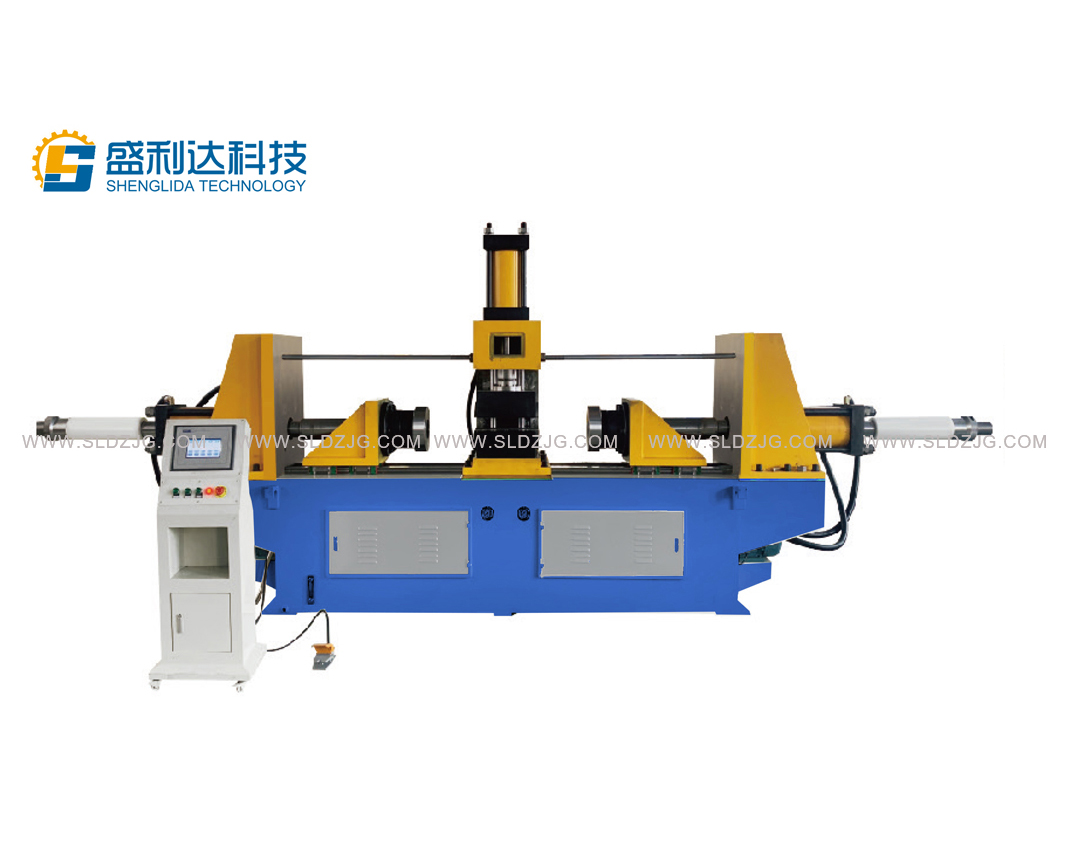

Double head tube shrinking machine

The tube end forming machines produced by Shenglida Technology are reliable, efficient and easy to integrate with automatic loading and unloading solutions or complex production lines. They can perform a variety of processing processes, including deburring, flaring, end trimming, shrinking, threading, rolling, sealing, material cutting and cutting, etc

Message Whatsapp

Shenglida Technology (Zhangjiagang) Co., Ltd. is a professional manufacturer of pipe bending machines, pipe cutting machines, pipe shrinking machines, chamfering machines and other pipe fittings equipment. Among them, the pipe end forming machine is divided into: sealing machine and pipe shrinking machine.

Pipe end forming machine:

Powerful hydraulic mechanism, durable.

From the simplest forming to complex multi-station processing, it meets various application needs.

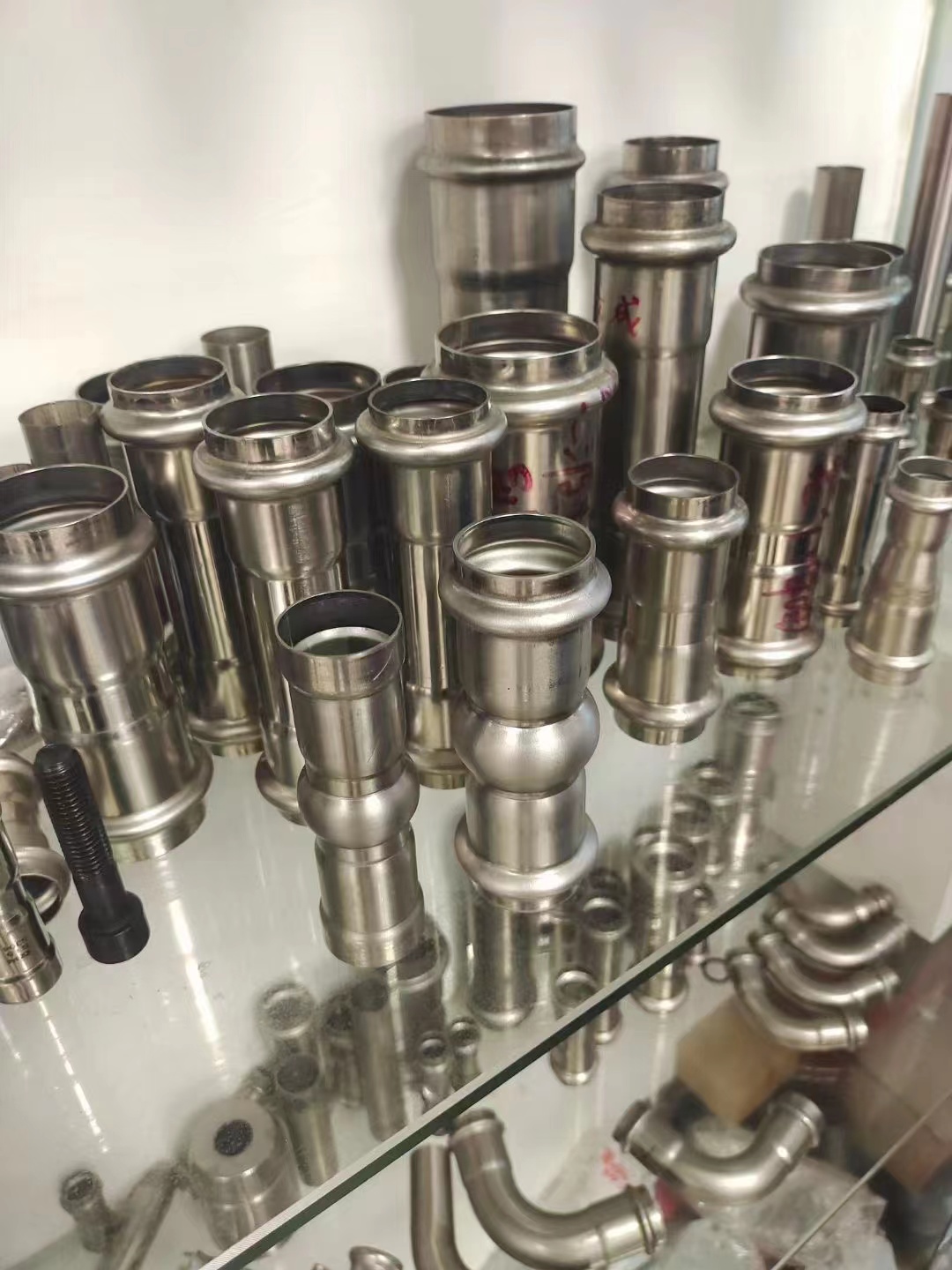

It is suitable for various forming such as pipe shrinking, pipe expansion, pier reinforcement, bell mouth, etc. The mold design is exquisite and durable.

Using linear guides as carriers, it operates without wear and has good product repeatability. It is suitable for end processing of iron pipes, furniture, automobile air conditioners, fuel pipelines, etc.;

Shenglida Technology (Zhangjiagang) Co., Ltd. is a professional manufacturer of pipe bending machines, pipe cutting machines, pipe shrinking machines, chamfering machines and other pipe fittings equipment. Among them, the pipe end forming machine is divided into: sealing machine and pipe shrinking machine.

Pipe end forming machine:

Powerful hydraulic mechanism, durable.

From the simplest forming to complex multi-station processing, it meets various application needs.

It is suitable for various forming such as pipe shrinking, pipe expansion, pier reinforcement, bell mouth, etc. The mold design is exquisite and durable.

Using linear guides as carriers, it operates without wear and has good product repeatability. It is suitable for end processing of iron pipes, furniture, automobile air conditioners, fuel pipelines, etc.;

Name/Model TM-40 TM-60 TM-80 TM-100 TM-120
Maximum applicable pipe fittings Ф40×2.0t Ф60×2.0t Ф80×2.0t Ф100×2.0t Ф120×2.0t
Maximum working stroke 100mm 130mm 150mm 150mm 150mm
Hydraulic output 4.5Mpa 12Mpa 12Mpa 14Mpa 14Mpa
Working speed 100mm in 3-4sec 100mm in 3-4sec 130mm in 5-6sec 140mm in 6-7sec 140mm in 8-9sec
Machine size 2000x550x1300mm 2000x600x1400mm 2900x700x1400mm 3000x750x1500mm 3500x900x1800mm
Machine weight 1100kg 1250kg 1600kg 1800kg 2500kg





Machine Model TW-40-II TW-60-II TW-80-II TW-100-II
Maximum applicable pipe (shrink pipe) Φ38 * 2.0T Φ60 * 2.0T Φ80 * 2.5T Φ100 * 2.0T
Working stroke (mm) 100 100 150 150
Motor power KW 4 5.5 7.5 11
Hydraulic output T 5.2 9.5 21 37
TWorking speed mm/sec Two-station7-10 Two-station7-10 Two-station8-12 Two-station14
TMachine sizecm 260*55*130 260*60*140 260*65*145 300*90*165
TMachine weight kg 1200 1300 1500 2000
